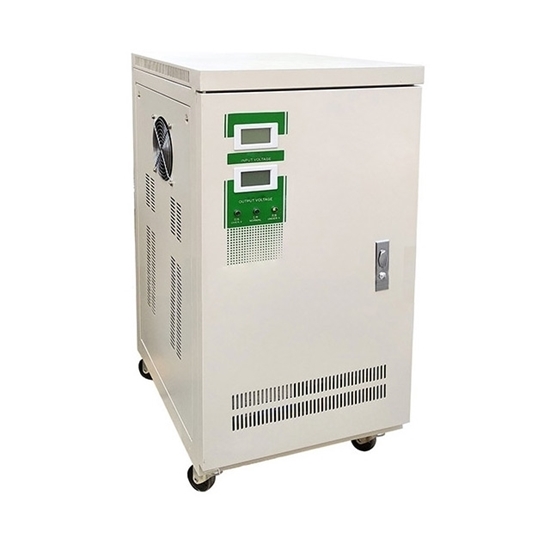

12kVA/15kVA/20kVA to 50kVA Single Phase AC Stabilizer

Technical Parameters

  • Product Type: Automatic single phase AC voltage stabilizer
  • Power Capacity: 12kVA – 50kVA
  • Phase: Single phase
  • Input Voltage Range: ±15% tolerance of output voltage
  • Output Voltage: 220V±3%/ 230V±3%/ 240V±3%/ 110V±3%
  • Frequency: 50Hz/60Hz
  • Adjust Time: <1sec. (Against 10% input voltage deviation)
  • Temperature Rise: <60°C
  • Efficiency: >95%
  • Ambient Temperature: -10°C~+40°C
  • Wave Form Distortion: No additional wave form distortion
  • Protection Grade: IP20


SIngle phase AC stabilizer with elegant appearance, compact structure, lightweight, low power waste, complete protection functions, stable and reliable, low output waveform distortion, and so on.


This series of single-phase full-automatic AC voltage stabilizer is a kind of servo stabilizer, which collects the sample and amplifies it and automatically controls the circuit, drives the servo motor to rotate the rocker arm and brush in the required direction, and finally adjusts the output voltage to the rated value, finally reaches the aim of stabilizing the voltage. AC voltage stabilizer can be widely used in areas, where the mains voltage often comes across sharp fluctuation or sharp seasonal variation, such as industrial production, scientific research medical treatment & hygiene, household electrical appliances, it can provide any loads with excellent power supply.
